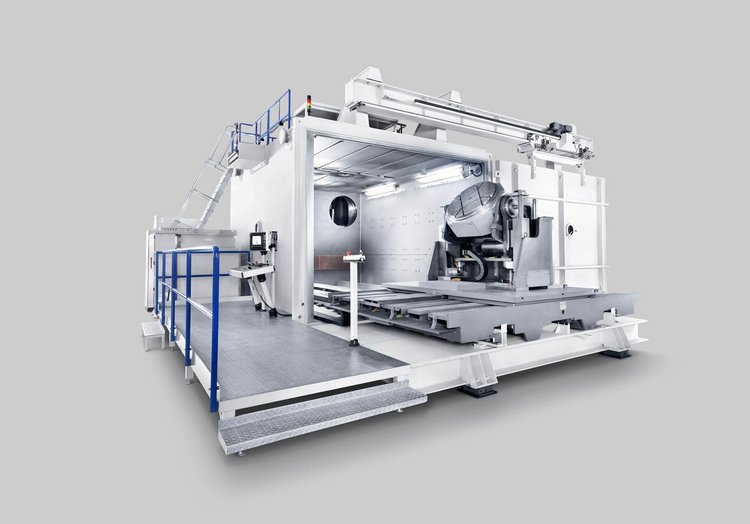

It can be operated using any external pro-beam electron beam generator and is available with turning/swiveling/lifting equipment that ensures the precise seating of workpieces (<30 µm). The optionally available gate shuttle system allows evacuation as well as loading and unloading while the process is running, which increases productivity and availability.
At a glance
- Ideal for a wide range of different components
- Optionally available with turning/swiveling/lifting equipment and a gate shuttle system for even higher productivity
Technical data
Chamber volume:
63 m³
Max. high voltage:
150 kV
Beam power:
45 kW
Regulated beam current:
0 to maximum 500 mA
Work space:
5300 mm x 3990 mm x 3000 mm
