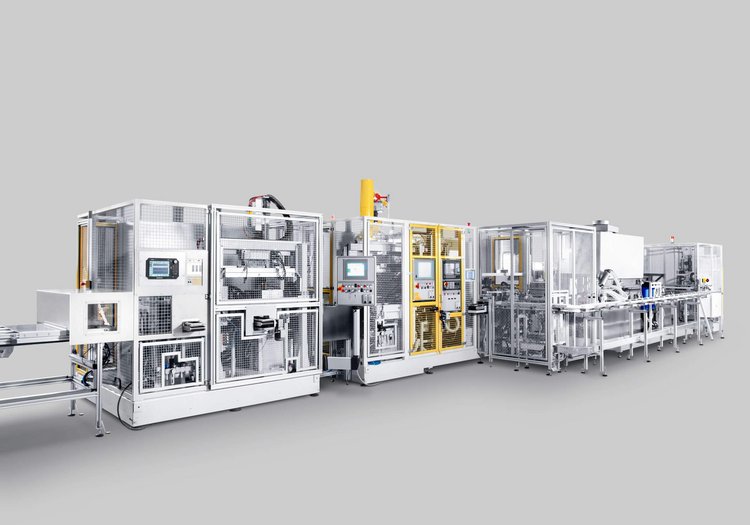

The Gearline E-beam with integrated electron beam technology offers our customers a complete turnkey solution that was specially designed for the automotive industry. It integrates up to twelve different work steps such as automatic component loading, washing, joining, pre-heating and demagnetization. The assembly line can be set up in a linear shape or a U shape depending on the requirements.
The Gearline E-beam is the ideal solution for the batch production of component families with the same weld seam geometry.
At a glance
- Fully automatic electron beam assembly line
- Integration of up to 12 work processes
- Production of up to 4,000 parts per day
- Many additional optional can be integrated (e.g. testing processes)
Technical data
Workpiece dimensions:
Diameters up to 150 mm, height up to 100 mm
Beam power:
Up to 6 kW
Regulated beam current:
0 to maximum 100 mA
